In Stock

Led stadium flood light

  • Lamp Luminous Efficiency(lm/w): 140-170
  • Color Rendering Index(Ra): 80
  • Support Dimmer: No
  • Lighting solutions service: Lighting and circuitry design, DIALux evo layout, Project Installation
  • Lifespan (hours): 50000
  • Working Time (hours): 50000
  • Input Voltage(V): AC 85-265V
  • CRI (Ra>): 80
  • Color Temperature(CCT): COOL WHITE
  • Beam Angle(°): 120
  • Lamp Body Material: Aluminum
  • IP Rating: IP67
  • Place of Origin: China
  • Brand Name: luxint
  • Model Number: LX-FL

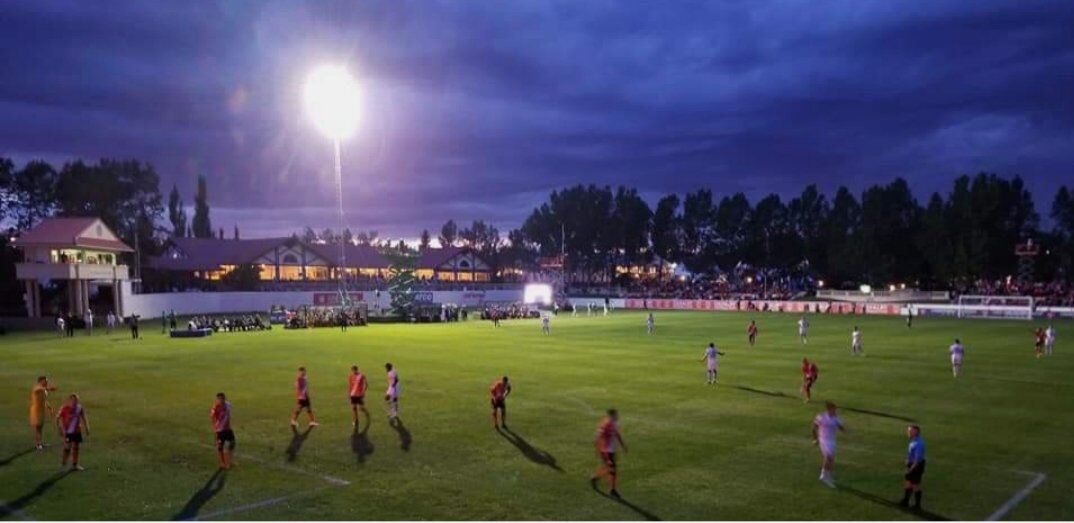

  • Application: Sports Stadiums
  • Light Source: LED
  • Warranty(Year): 5-Year
  • Product Name: led stadium light 100w 200w 300w 400w 500w 600w 800w 1000w
  • Type: flood Lighting
  • Certification: CE ROHS
  • Power: 100W 200w 300w 400w 500w 600w 800w 1000w
  • Keyword: LED Flood Light Fixture
  • beam angle: 120° (20°,40°,90°,150×80°Optional)
  • LED Chip: SMD 3030
  • Power Factor: ≥0.95
  • Power Frequency: 50-60Hz
  • Driver Type: Constant Current (CC)

描述

LUXINT 55000 lumen outdoor IP67 100W 200w 300w 400w 500w 600w 800w 1000w high pole led stadium flood light

Packaging & Delivery

Selling Units:
Single item
Single package size:
75X70X39 cm
Single gross weight:
36.000 kg
Package Type:
Packing Type: 2 unit(s)/ctn
Inner Packing Dimension: 330x230x290mm
Outer Packing Dimension: 485x360x320mm
GW: 2.7kg  1 unit(s)/ctn
GW: 5.7kg  2 unit(s)/ctn

Product Description

The FL01 series LED flood light is a high power range outdoor lighting, which can be used for many different applications. The modular type enables a better heat radiation, at the same time, offers flexibility of r wide power range from 100W upto 1000W. This lamp adopt top performance LEDs and high standard waterproof LED drivers, providing a long usage life. 120 degree PC optical lens to achieve the optimized lighting performance for outdoor area lighting, high mast lighting and stadium lighting. The lamp adopt aluminum and waterproof cable connectors to achieve great outdoor durability.

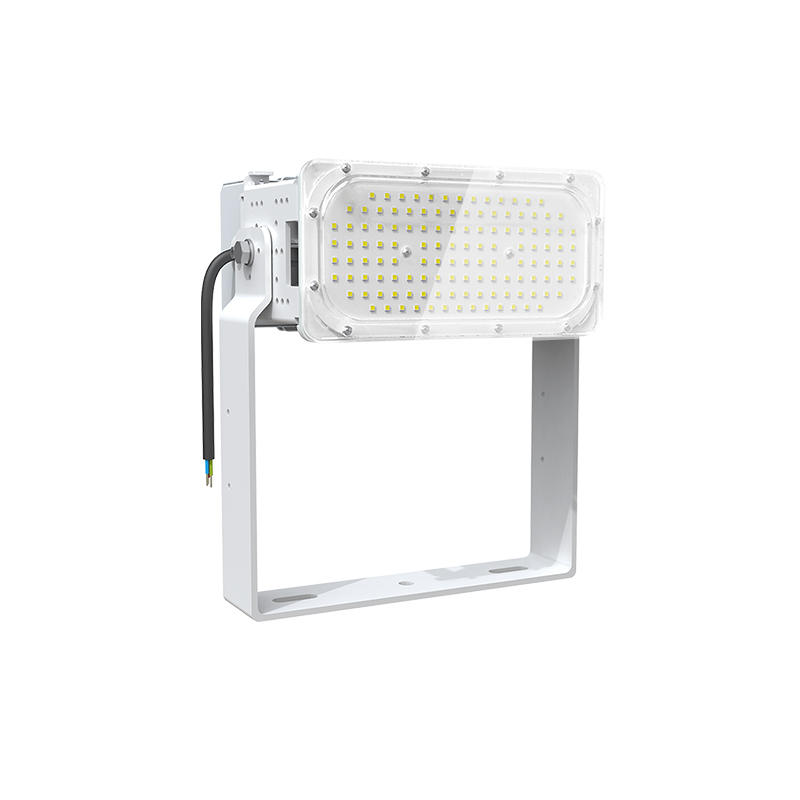

100W  LED FLOOD LIGHT FL SERIES

Applications:
Building, factory, storage room, public ,parking lot ,exhibition building, domestic block, gymnasium, gas station, square,
advertise, lawn, super market Wharf ,Garden etc.

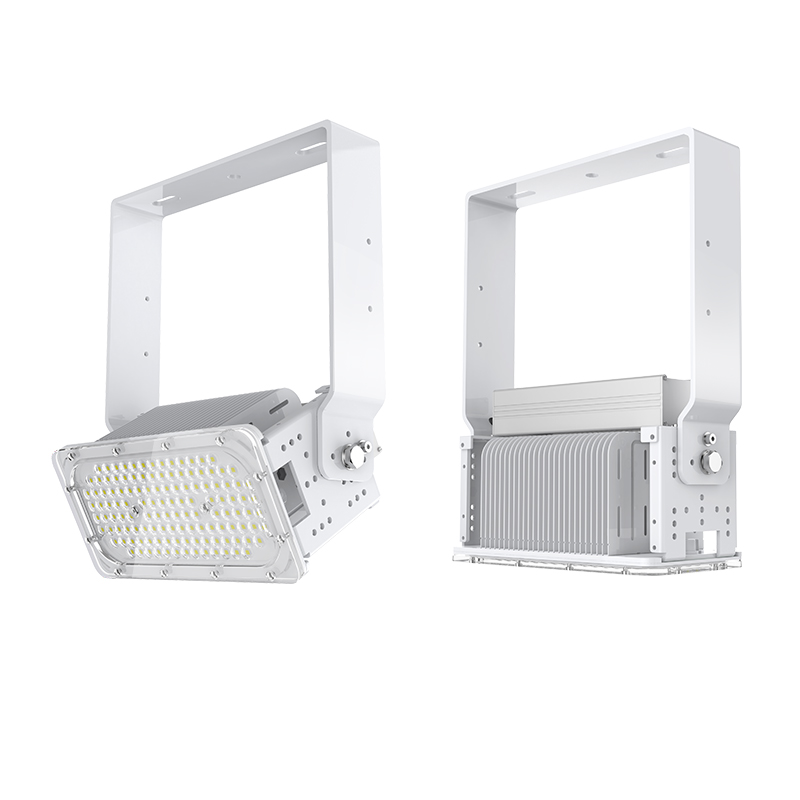

Detailed Images

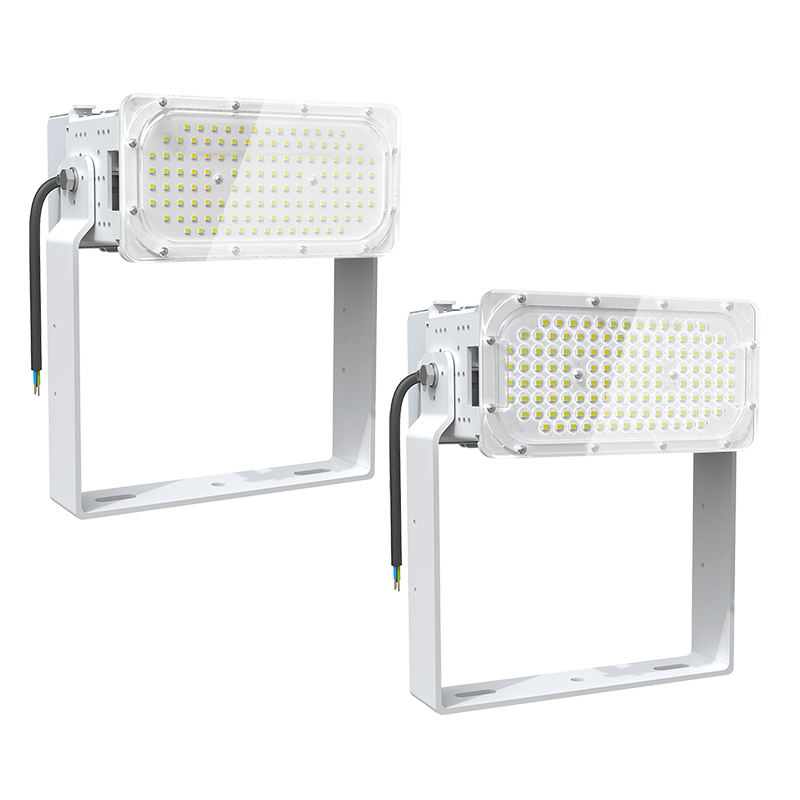

Ultra-thin lens


120 degree free conversion
Lightning protection device on the back, lightning protection and waterproof
Advantage
Top Standard CREE or Lumileds LEDs
• > 120lm/W
• 100,000 hours life
• > 82Ra
• High Temperature Tolerance • Better Light Maintenance
• Better Color Consistency
• Better Outdoor Stability

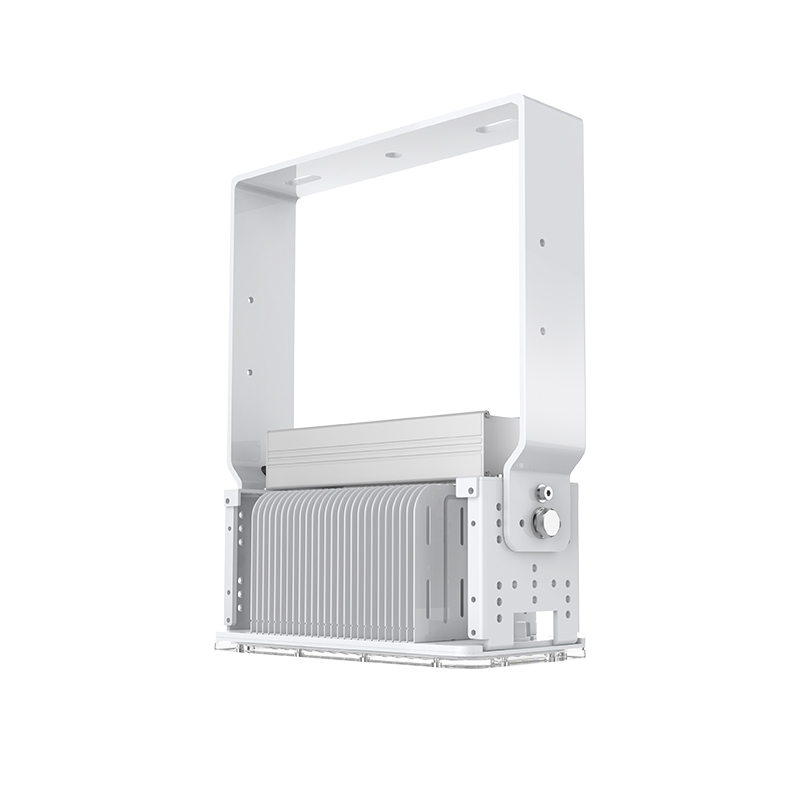

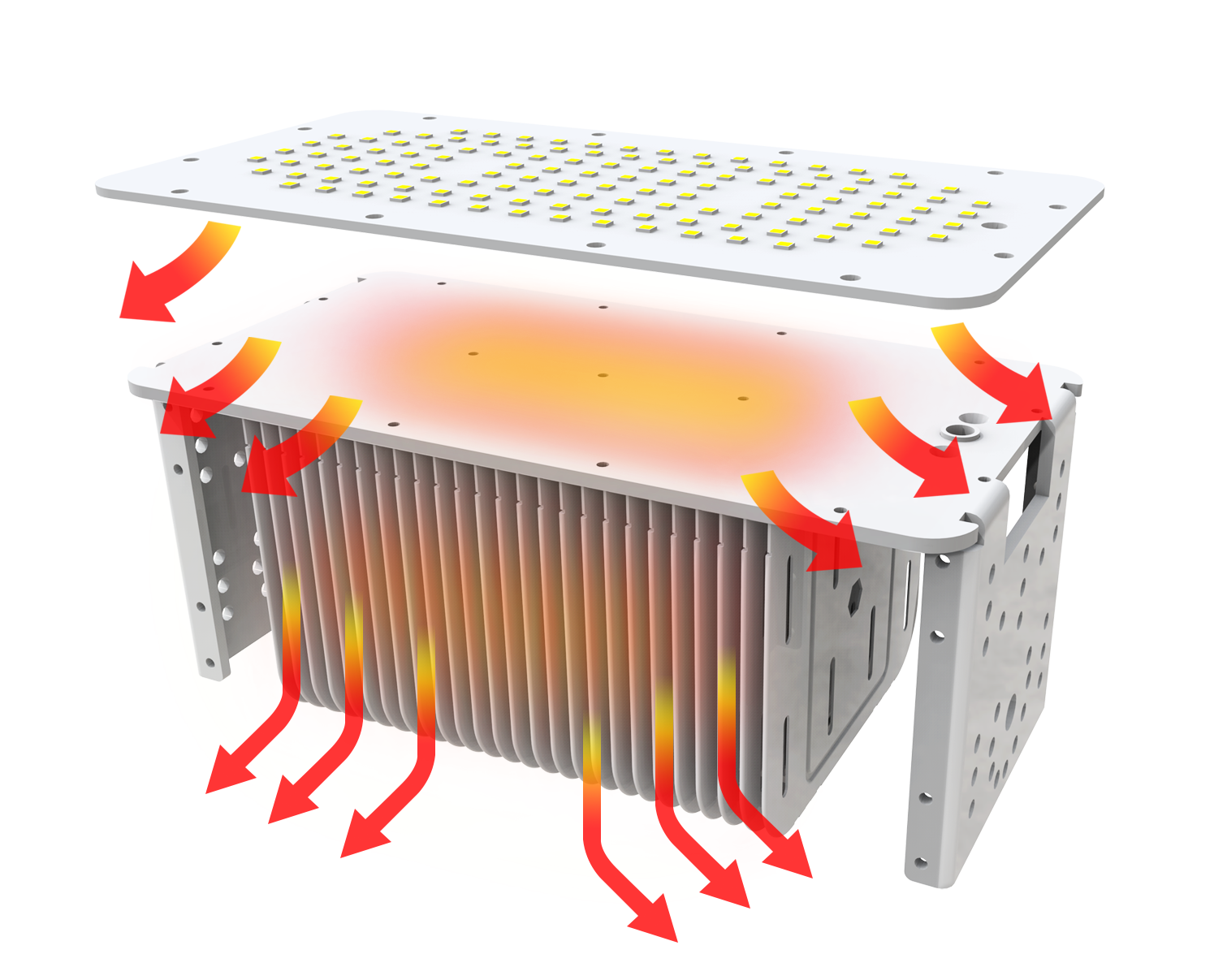

3D cooling fins

• Speed up cooling
• Multi Beam Angle Options • High Transparency and High Efficiency
• 304 stainless steel, safe and reliable
•360° adjustable modules & brakcet
High performance and Top Standard Cables
 • High-tightness waterproof silicone ring • Easy Connection IP67 Waterproof Connectors(with accessories) • Rubber Material for Higher Temperature Performance • 10KV Surge Protection • Three years warranty Guarantee.


Product Name

100w LED Flood Light


Model

LX-FL01-100W


Power

100W


Voltage

AC100~ 277V

IP Level

IP65

Style
Modern

SPECIFICATIONS


Product Name: FL series LED Flood Light 100w

LED Type: OSRAM 3030 LEDs

LED Efficacy: >120lm/W
CCT: 5700K

 CRI: ≥82Ra

LED Life: >100,000hrs
Beam Angle: 120°

PF: >0.95

Power Supply Efficiency: >91%
Surge Protection:  10KV Optional
Control: 1-10V Dimming , Photocell, Dali Dimming , Intellectual Control Optional
Material: Aluminum and PC Optical Lens
Color: White
Protection Grade: IP65
IK Grade: IK10
Warranty: 3 years

Optional Accessories

LIGHT DISTRIBUTION

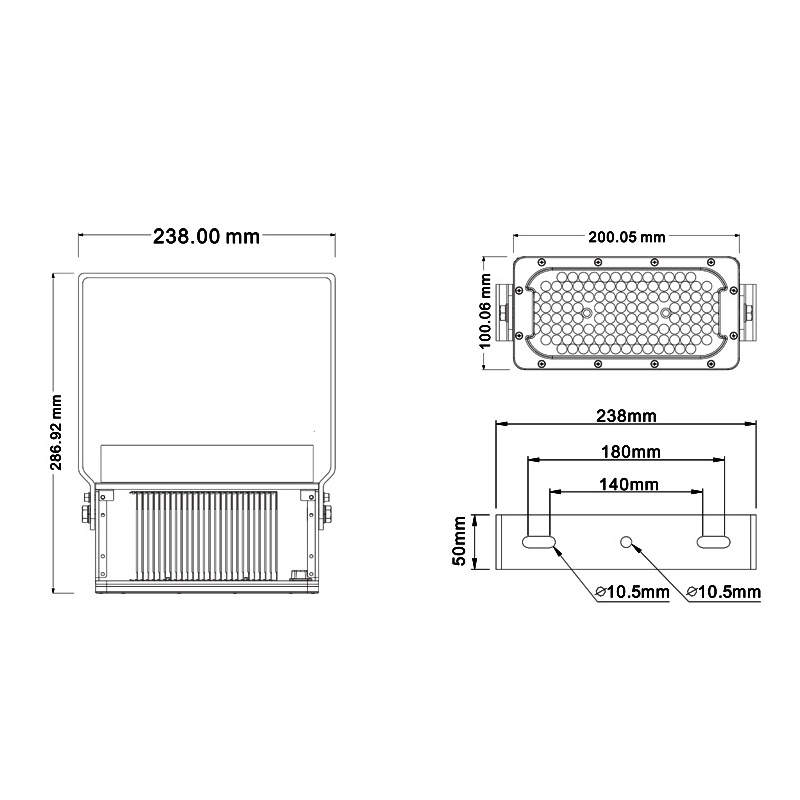

  • Size Picture
